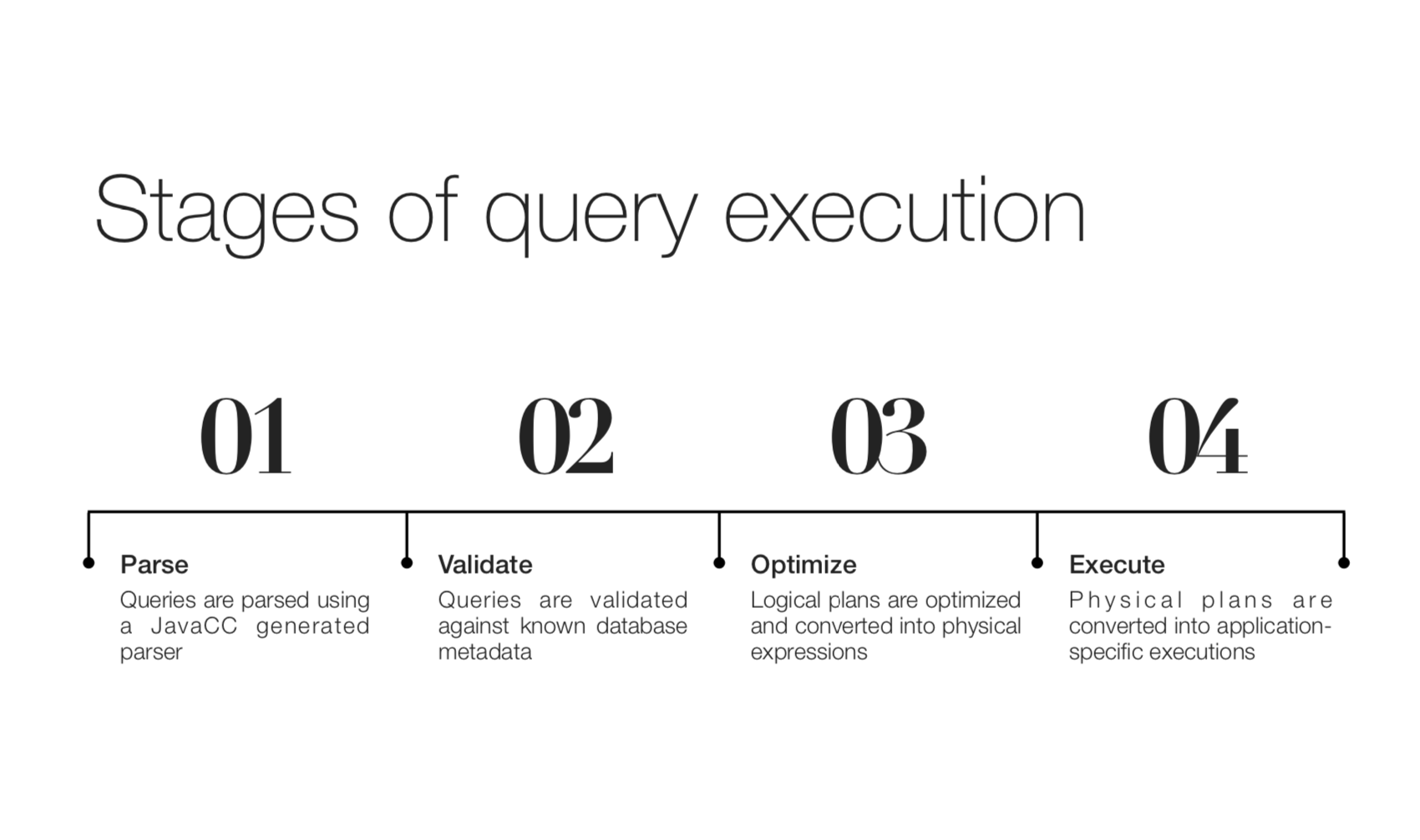

COMPONENTS

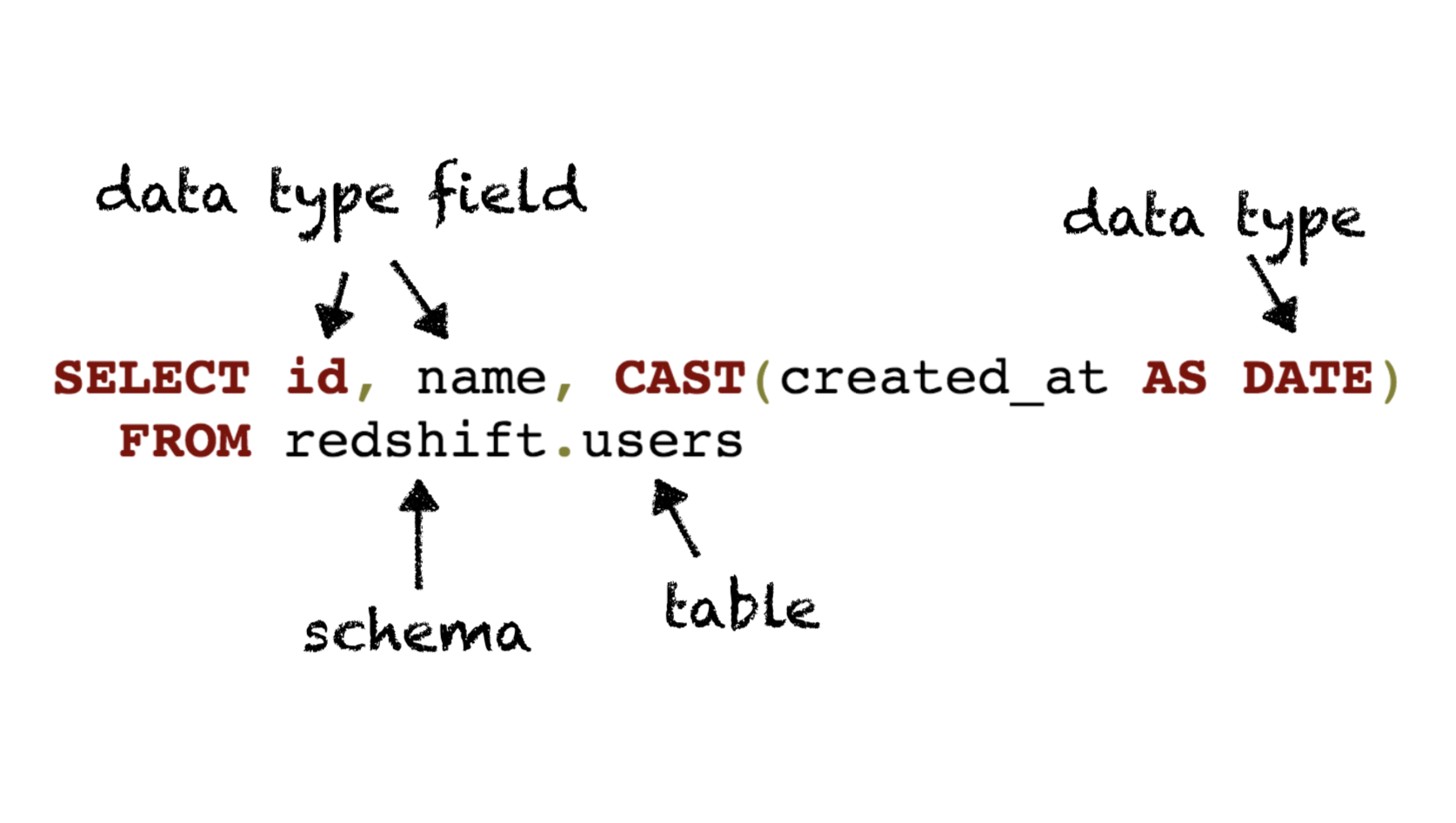

Catalog

包括 schema,Table,RelDataType,Statistic

TableStatistic :rowCount行数,和ColumnStat

ColumnStatistic : distinct values ndv,nullCount,avgLen,maxLen,maxValue,minValue

SQL parser

1.将有效的SQL查询解析为抽象语法树（AST）

2.用JavaCC编写的LL（k）解析器

3.Input queries被解析为抽象语法树（AST）

4.Tokens在Calcite中由SqlNode表示

5.SqlNode也可以通过unparse方法转换回SQL字符串

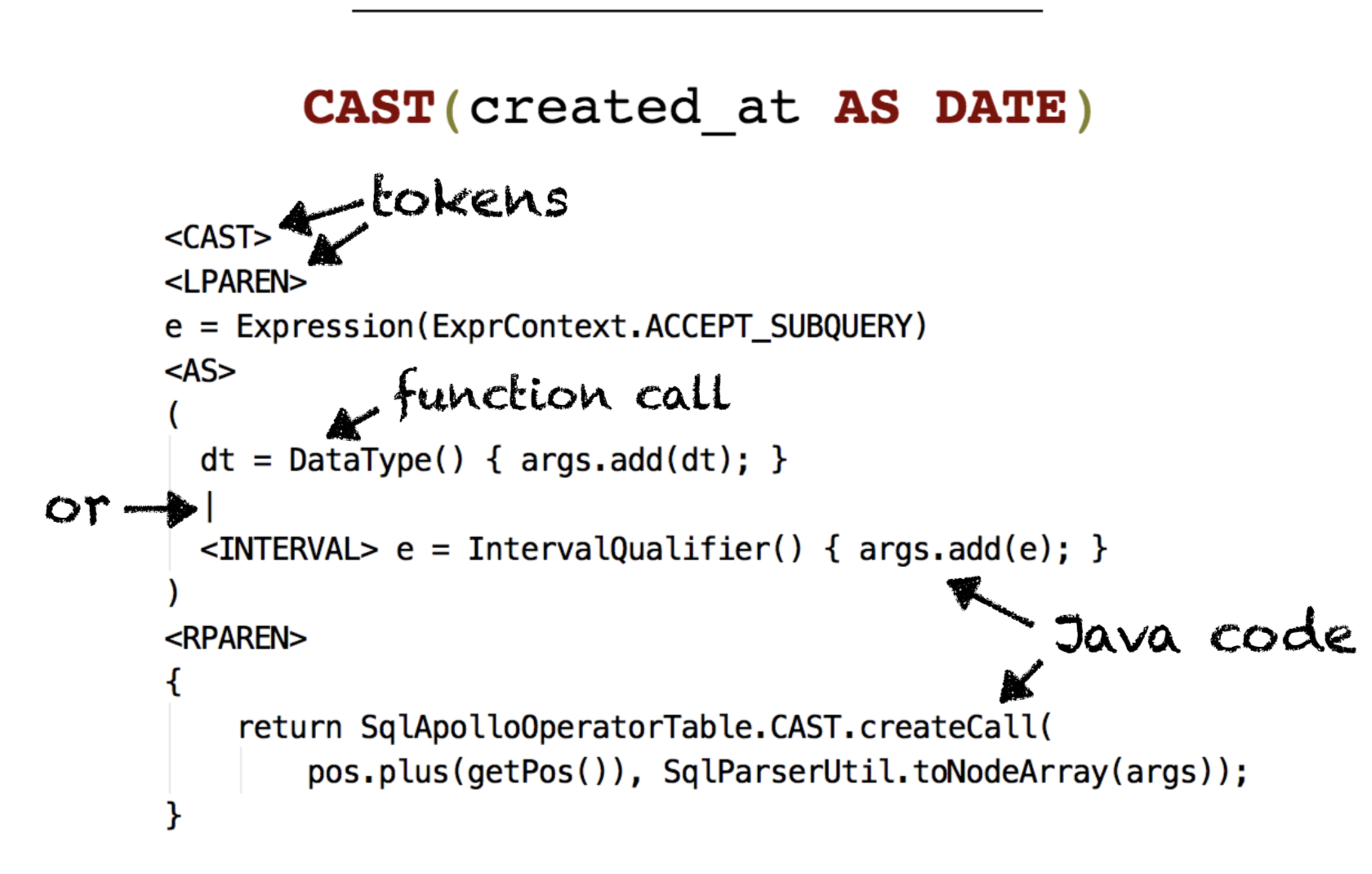

JavaCC

1.Java编译器

2.创建于1996年的Sun Microsystem

3.从特定域的语言生成Java代码

4.ANTLR是用于Hive和Drill等项目的替代品

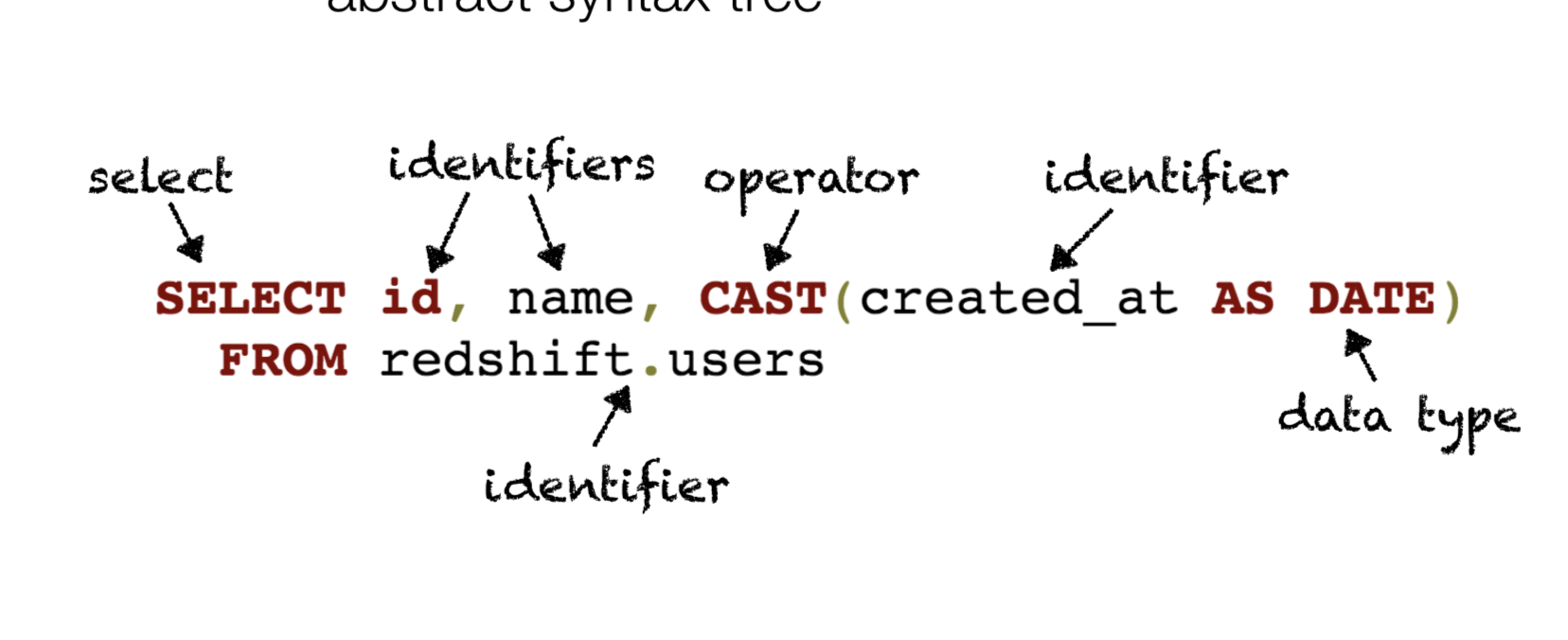

SQLNode

SqlNode 表示抽象语法树中的元素

SQL validator

根据Catalog提供的Metadata信息验证抽象语法树

Query optimizer

将AST转换为logical plans，优化 logical plans，并将 logical expressions 转换为 physical plans

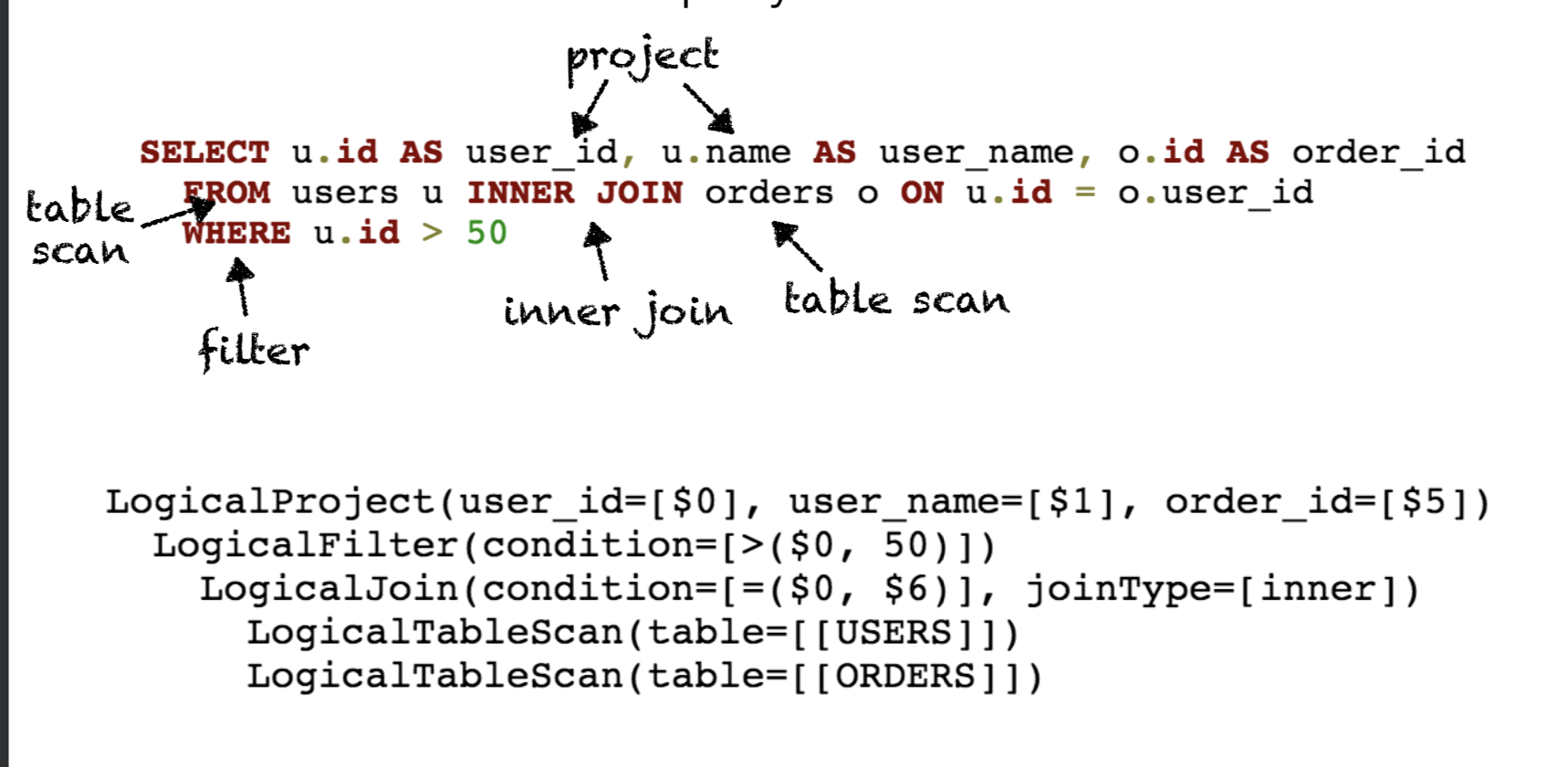

Query Plan

Query plans represent the steps necessary to execute a query

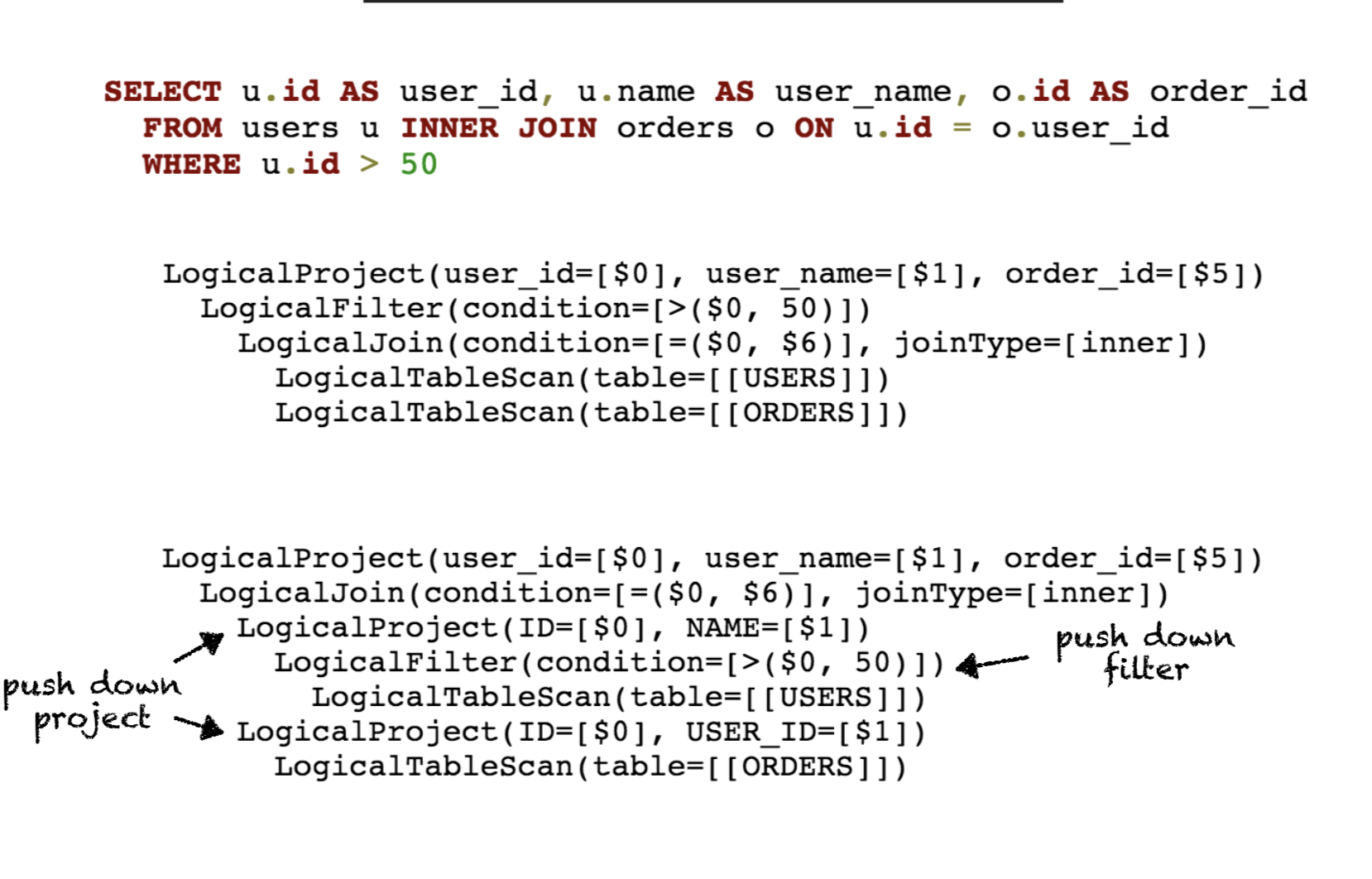

Query Optimization

Optimize logical plan Goal is typically to try to reduce the amount of data that must be processed early in the plan Convert logical plan into a physical plan Physical plan is engine specific and represents the physical execution stages

Prune unused fields Merge projections Convert subqueries to joins Reorder joins Push down projections Push down filters

SQL generator

Converts physical plans to SQL

关键词

Relational algebra (RelNode)

RelNode 表示 a relational expression 是处理 data的行为

比如 Aggregate,Sort,Join,Project,Filter 等

RelNode 根据上游的Input数量,抽象出 3类，SingleRel,BiRel,SetOp

Logical algebra

比如LogicalAggregate

Physical algebra

Row expressions (RexNode)

RexNode 表示 row级别的 表达式 ,在 validate之后生成 所以有该row的type类型

 {@link RexLiteral} (constant value),
* {@link RexVariable} (variable), {@link RexCall} (call to operator with
* operands). Expressions are generally created using a {@link RexBuilder}
* factory.</p>

RexNode通过 RexBuilder Factory生成

Traits (RelTrait)

表示 RelNode的 Trait,并不会 改变执行,主要用于 验证 plan output,Flink Retract用到 此Trait 3个重要的 trait types: Convention RelCollation 排序 ASC DESC RelDistribution hash,range,random,boardcast

举例 FlinkRelDistributionTraitDef SINGLETON(“single”), HASH_DISTRIBUTED(“hash”), RANGE_DISTRIBUTED(“range”), RANDOM_DISTRIBUTED(“random”), ROUND_ROBIN_DISTRIBUTED(“rr”), BROADCAST_DISTRIBUTED(“broadcast”), ANY(“any”);

比如在优化算子里面要满足是按key 进行hash Distribution

private def isInputSatisfyRequiredDistribution(input: RelNode, keys: Array[Int]): Boolean = {
    val requiredDistribution = createDistribution(keys)
    val inputDistribution = input.getTraitSet.getTrait(FlinkRelDistributionTraitDef.INSTANCE)
    inputDistribution.satisfies(requiredDistribution)
  }

Conventions (Convention)

Convention is a type of RelTrait

A Convention is associated with a RelNode interface

SparkConvention, JdbcConvention, EnumerableConvention, etc

Conventions are used to represent a single data source

Inputs to a relational expression must be in the same convention

METADATA

Rules (RelOptRule)

Rules 用于修改 query plans

一共有2种类型:converters and transformers Rules

Converter rules implement Converter and convert from one convention to another

Rules are matched to elements of a query plan using pattern matching

onMatch is called for matched rules

Converter rules applied via convert

Converter Rule

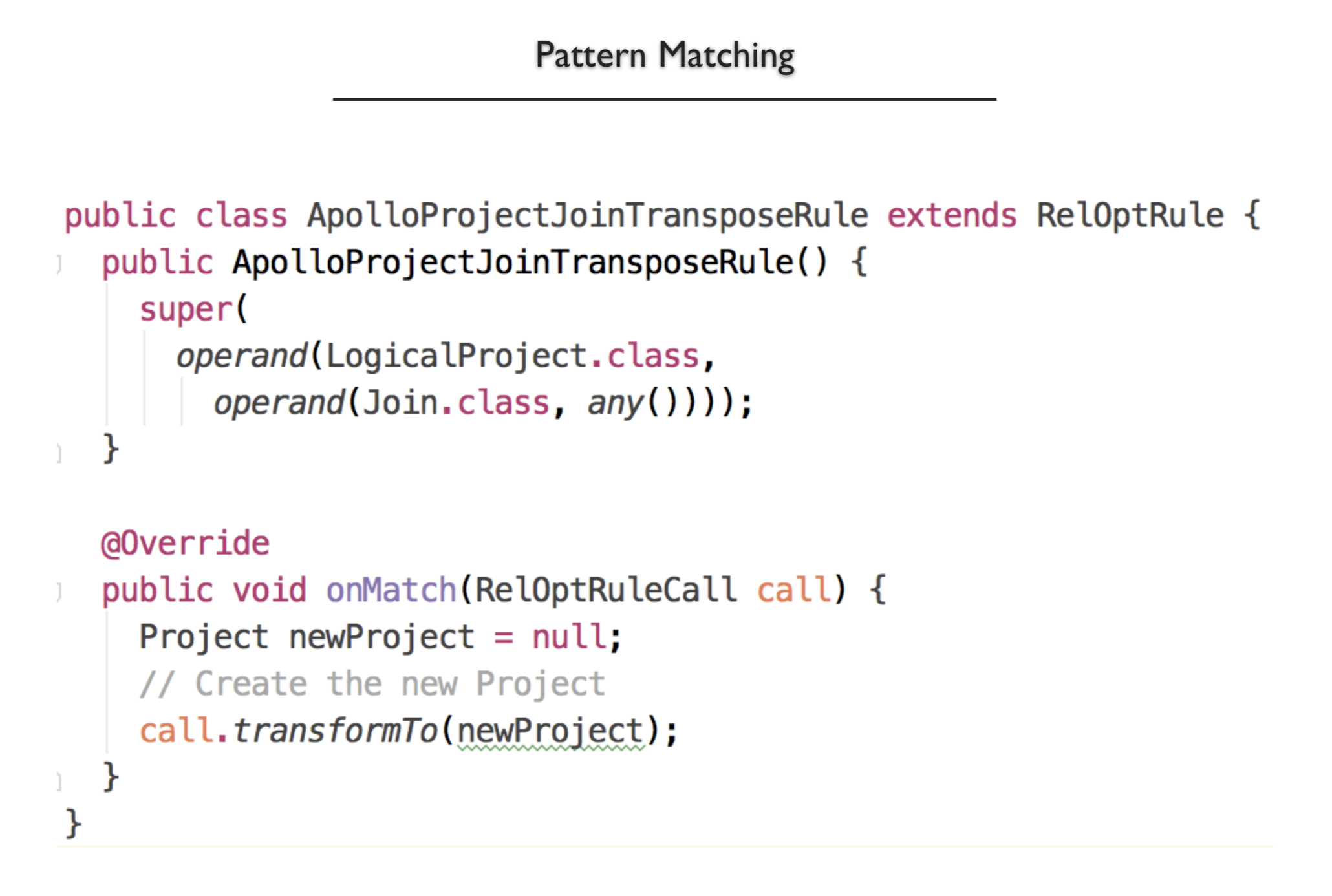

Pattern Match

Planners (RelOptPlanner)

Planners implement the RelOptPlanner interface

Two types of planners: HepPlanner VolcanoPlanner

Heuristic Optimization

HepPlanner is a heuristic optimizer similar to Spark’s optimizer Applies all matching rules until none can be applied Heuristic optimization is faster than cost- based optimization Risk of infinite recursion if rules make opposing changes to the plan

Cost-based Optimization

VolcanoPlanner is a cost-based optimizer Applies matching rules iteratively, selecting the plan with the cheapest cost on each iteration Costs are provided by relational expressions Not all possible plans can be computed Stops optimization when the cost does not significantly improve through a determinable number of iterations

Cost is provided by each RelNode Cost is represented by RelOptCost Cost typically includes row count, I/O, and CPU cost Cost estimates are relative Statistics are used to improve accuracy of cost estimations Calcite provides utilities for computing various resource-related statistics for use in cost estimations

Programs (Program)
